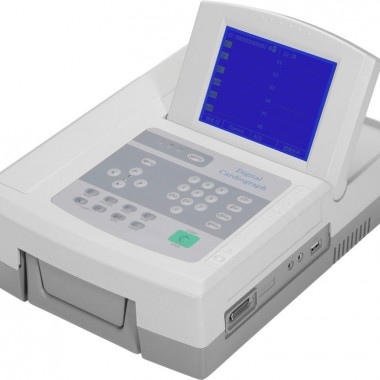

Hotsale Digital Hospital Electrocardiograph 12 Channel ECG Machine

  • Purchase Qty: 350
  • Unit: Vial(s)
  • Fob Unit Price: US $800
  • Production Capacity:500Units/month
  • Payment Terms:T/T , Money Gram
  • Favorite
Benemed Industry Co., Limited

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Model:BM-ECG12A
  • Certification:CE
  • Net Weight:5.5kg
  • Dimension:50*41*23cm
  • Packaging Details:Carton with Foam
  • Brand Name:BENEMED
  • Trademark:BENEMED
  • Place of Origin:China
  • Warranty:1 year

Description

Features:

  1. 6/7/12channel printout
  2. Simultaneous 12 lead acquisition
  3. 5.7 inch flexible LCD (320*240) to display 12 channel ECG
  4. Waveform measurement and interpretation
  5. USB interface for data transmission to PC
  6. Operated by AC/rechargeable battery
  7. One touch operation via touch screen or strike
  8. 300 exams in mermory for recall and duplication
Specification:

leatStandard 12 leadMemory16 exams in memory for recall and duplication
Input CiruitIsolated: Protection against pace making and defibrillationA/D Converter12 bit
Input Impeedance≥50MΩRecording PaperRoll paper/Z fold 210mm×30m/210mm×20m
Input Circuit Current≤50nAOperation ModeAUTO/MAN
Calibrating Voltage1mV±3%Rhythm LeadStandard 12 lead
Skin Voltage Tolerance±300nVExternal Signal10mm/mV/mV±5%; Single ended≥100KΩ
Sensitivity5,10,20,40mm/mVECG Output0.5V/mV±5%; Single ended≥100Ω
FilterAC:50Hz(-20dB); EMG:30-45Hz(-3dB)Safety LevelClass I, Type CF
Paper Speed6.25, 12.5, 25, 50mm/s ±3%Power RequirementsAC: 220V, 50 Hz/110V,60Hz
DC: Built in rechargeable battery
    Supprting 50 exams after
    complete charging
Time Constant≥ 3.2s (0, +20%)
Noise Level≤15μVp-p
Frequency Response0.05-150Hz(-3dB)
Sampling Rate1.25msPackage50×41×23cm for 1 set
Baseline ControlAutomatic positionWeight5.5 Kgs
PC ConnectionUSB interfacePrinterThermal array printer
