Feature:

•Digital Beam Forming
•Superior image quality
•Dynamic Receiving Apodization
•Dynamic Frequency Scan
•Advanced imaging processing
•USB port for convenient image transfer

Specification

General Description:
Imaging Modes:      B, B/B, B/M, 4B, M
Scanning Modes:    Convex, Linear
Gray Scale:             256
Display:                   12'' LED monitor
Gain:                        up to 120dB
Scanning dept:         up to 250mm
Imaging technology: Digital Beam-forming
                                  Dynamic Frequency Scan
                                  Dynamic Receiving Focusing
                                  Dynamic Receiving Apodization
                                   Real-time Dynamic Aperture

Imaging Processing
Pre-processing:      8-segment TGC adjustment
                               Dynamic range
                               Frame correlation
                               Edge enhance
Post-processing:     Gray scale
                                Polarity reverse
                                Left/Right reverse
                                Up/down reverse
Functions:
ZOOM:                  Local zoom
                              Panoramic zoom
Image memory:     128 frames
Cine Loop:             256 frames
View:                      Patient info, patient image, Patient report
Pseudo color:        16 colors selectable

Software Functions
General measurement:  distance, circumference, area, volume, angle, ration, etc
Calculation package:      abdomen, cardiac, gynecology, obstetrica, urology, orthopedics, small parts, etc
Obstetric measurement:  BPD, CRL, GS, FL, HC, AC, EDD, AFI, FW
Comments:                      Week, day, time, doctor time, patient ID, age, sex, transducer type, transducer frequency, gray scale

Peripheral ports:

 USB  SVGA  PAL-D  Video output

Others:
Net weight:            6.0KG
Power supply:          AC 220V±22V 50Hz
Dimensions:           480*380*410

Standard Configurations:

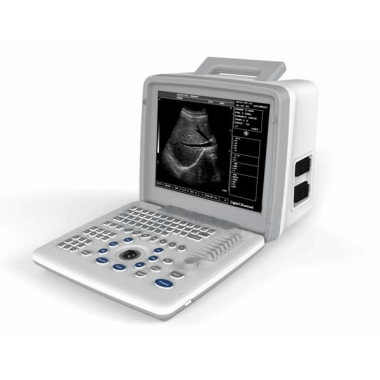

BW-5 main unit
12'' LED  monitor
Two transducer connectors
256 frames cine loop
Electronic convex transducer

Options:
Electronic linear transducer
Electronic endocavity transducer
High frquency rectal linear transducer
Mobile trolly
Thermal printer
