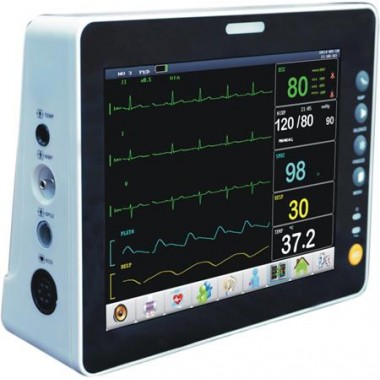

Benemed Industry Co., Limited

Features:

- Unique slim design, stype with space-saving
- Parameters: ECG, SPO2, NIBP, HR, TEMP, RESP
- Networkable with Central Monitoring System
- 720 hours trend data analysis
- Compact design is convenient for mobile monitoring
- Built-in rechargeable battery with Max 6 hour operating time
- Optional:Touch screen, central monitoring(LAN/WLAN), Handle

Specification:

ECG
Lead mode: 5 Leads(RA,LA,LL,RL,V)
Connection method: I, II, III,AVR,AVL,AVF,V
Lead Mode: 3 Leads (RA,LA,LL)
Connection method: I, II,III
Waveform: 1ch
Gain: x250, x500, x1000, x2000
HR Range: Adult: 15~300bpm
          Neo/Ped: 15~350bpm
Accuracy: ±1% or ±1bpm, which great
Resolution: 1bpm
Sensitivity: >200(uVp-p)
Differential input impedance:≥5MΩ
ST segment Monitoring Range
Measure Range:-2.0~+2.0mV
Measure Accuracy: -0.8mV~+0.8mV

Heart rate
Measuring range: 0~350bpm
Accuracy: ±1bpm
Resolution: 1bpm
Sensitivity: >200UVp-p

Respiration
Method: Impedance between R-F(RA-LL)
Differential Input Impedance: >2.5MΩ
Measuring Impedance Range: 0.3~3.0 MΩ
Base line Impedance Range: 200~4000Ω
Bandwidth: 0.1~2.5Hz
Resp. Rate: Adult: 2~120BrPM
           Neo/Ped: 2~150BrPM
Resolution: 1 BrPM
Accuracy: ±2 BrPM
Alarm: 10~40S

NIBP
Method: Oscillometric
Mode: Manual/Auto/STAT
Measuring Interval in AUTO Mode: 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)
Measuring Period in STAT Mode: 5 Min
Pulse Rate Range: 40~240bpm
Alarm Type: SYS, DIA, MEAN
Resolution
Pressure: 1mmHg
Accuracy: Maximum Mean error: 5mmHg
Maximum Standard deviation: 8mmHg

SPO2
Display: Number of SPO2,waveform of capacity,Pulse
Measuring range: 0~100%
Resolution: 1%
Accuracy: 70~100% (±2%)
Alarm system: Audio-video alarm
Pulse rate range: 0~300bpm

TEMP
Channel: 2
Measuring and Alarm Range: 0~50ºC
Resolution:0.1ºC
Accuracy: 0.1ºC
Actualization interval: about 1 Second.
Average Time Constant: <10 Second.

System
Display system: 8 inch high-brightness color display
Network with central station
Resolution: 800x600
Power supply:AC100V~250V,50Hz/60Hz
Optional Parameter: IBP,EtCO2,Recorder,Touch Screen,Central Monitoring (LAN/WLAN),Handle,Car Charger
Size: 170mm×220mm×78mm
Weight: 1.5kg
