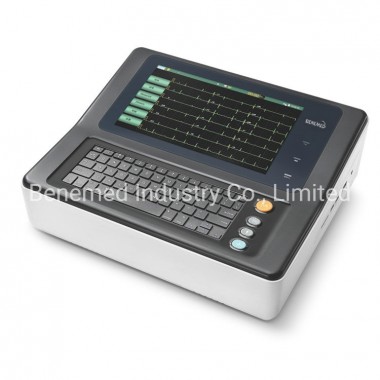

Premium Hospital ECG Machine with 10.1 Inch Touch Screen Bm-ECG1212

  • FOB Price:US $1000-1500 / Vial(s)
  • Min.Order:1 Vial(s)
  • Production Capacity:500 units/unit
  • Payment Terms:T/T , Money Gram
  • Favorite
Benemed Industry Co., Limited

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Model:BM-ECG1212
  • Certification:CE
  • Net Weight:8.5KG
  • Dimension:40*45*31cm
  • Packaging Details:Carton with foam
  • Brand Name:BENEMED
  • Trademark:BENEMED
  • Place of Origin:China
  • Warranty:1 year

Description

Features:

  1. 10.1 inch (1024*600) color TFT LCD with touch screen, Rapid preview of ECG wavfeform before printing
  2. Seamless connection with HIS
  3. Data output in format of FDA-XML , DICOM,DAT, BMP, JPG, SCP
  4. WLAN/LAN connection for data transmission via ftp
  5. ECG algorithm certified by AHA/MIT/CSE database & 30 year application
  6. Particular ECG analysis as per age difference
  7. One touch operation via touch screen or strike
  8. Compatible with external VGA, PC keyboard,mouse and bar code scanner
Specification:
Leads:    9/12leads simultaneous acquisition
Sampling Rate:  16000Hz/ channel/second
A/D Resolution: 24 bits
HR Constant:   30-300bpm
Time Constant:≥3.2s
Polarizing Voltage: ±600mv
Input Impedance:   ≥50 MΩ(10Hz)
Frequency Response:0.01-300Hz
Noise Level:  ≤12.5μV (p -p)
DFT Filter: 0.01/0.05/0.32/0.67 Hz
Pacemaker Detection:  Amplitude:±750μV-±700 mV, Width 50μs-2.0ms
Sampling Frequency:16000Hz
Power Supply:AC input with external power adaptor of 100-240v,50/60Hz
Rechargeanle Lithium battery (4400mAh) supporting 400 exams
Recording Speed: 5/6.25/10/12.5/25/50 mm/s
Recording Paper: Z-fold 210*295mm*100sheets
Roller type 210mm*20/30m
EMG Filter/Low Pass:25/35/45/75/100/150/270/300Hz
LCD Display:10.1 inch TFT color LCD (1024*600) with touch screen
CMRR:≥120dB
