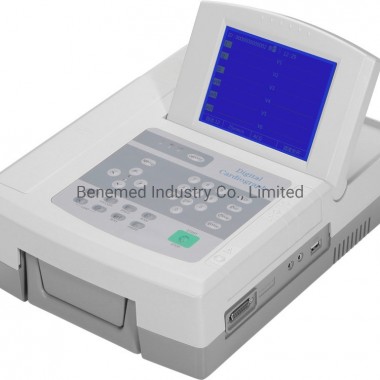

Hotsale Digital Hospital Electrocardiograph 12 Channel ECG Machine

  • FOB Price:US $350-800 / Vial(s)
  • Min.Order:1 Vial(s)
  • Production Capacity:500 Units/month
  • Payment Terms:T/T , Western Union , Money Gram
  • Favorite
Benemed Industry Co., Limited

Business Type:Manufacturer


Ddu Verified

HOT Rank


Product Information

  • Model:BM-ECG12A
  • Certification:CE
  • Net Weight:5.5KG
  • Dimension:50*41*23cm
  • Packaging Details:Carton with foam inside
  • Brand Name:BENEMED
  • Trademark:BENEMED
  • Place of Origin:China
  • Warranty:1 year



  1. 6/7/12channel printout
  2. Simultaneous 12 lead acquisition
  3. 5.7 inch flexible LCD (320*240) to display 12 channel ECG
  4. Waveform measurement and interpretation
  5. USB interface for data transmission to PC
  6. Operated by AC/rechargeable battery
  7. One touch operation via touch screen or strike
  8. 300 exams in mermory for recall and duplication

leatStandard 12 leadMemory16 exams in memory for recall and duplication
Input CiruitIsolated: Protection against pace making and defibrillationA/D Converter12 bit
Input Impeedance≥50MΩRecording PaperRoll paper/Z fold 210mm×30m/210mm×20m
Input Circuit Current≤50nAOperation ModeAUTO/MAN
Calibrating Voltage1mV±3%Rhythm LeadStandard 12 lead
Skin Voltage Tolerance±300nVExternal Signal10mm/mV/mV±5%; Single ended≥100KΩ
Sensitivity5,10,20,40mm/mVECG Output0.5V/mV±5%; Single ended≥100Ω
FilterAC:50Hz(-20dB); EMG:30-45Hz(-3dB)Safety LevelClass I, Type CF
Paper Speed6.25, 12.5, 25, 50mm/s ±3%Power RequirementsAC: 220V, 50 Hz/110V,60Hz
DC: Built in rechargeable battery
    Supprting 50 exams after
    complete charging
Time Constant≥ 3.2s (0, +20%)
Noise Level≤15μVp-p
Frequency Response0.05-150Hz(-3dB)
Sampling Rate1.25msPackage50×41×23cm for 1 set
Baseline ControlAutomatic positionWeight5.5 Kgs
PC ConnectionUSB interfacePrinterThermal array printer
