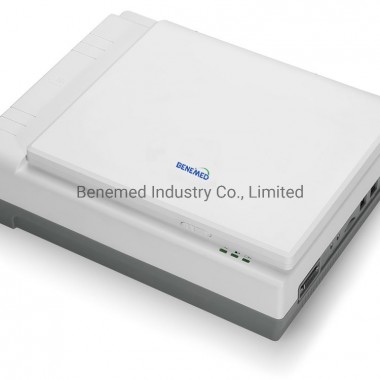

12 Inch Big Screen Foldable Digital Hospital Electrocardiograph 12 Channel

  • FOB Price:US $350-1000 / Vial(s)
  • Min.Order:1 Vial(s)
  • Production Capacity:500 Units/month
  • Payment Terms:T/T , Western Union , Money Gram
  • Favorite
Benemed Industry Co., Limited

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Model:BM-ECG12C
  • Certification:CE
  • Net Weight:8.5KG
  • Dimension:40*45*31cm
  • Packaging Details:Carton with foam inside
  • Brand Name:BENEMED
  • Trademark:BENEMED
  • Place of Origin:China
  • Warranty:1 year

Description

Features:

  1. 12.1 inch fold up high resolution TFT LCD (800*600) to display ECG trace, diagnosis, setting menu & operating status
  2. 6/7/12 channel printout format
  3. Alphanumeric keyboard supporting input patient info/hospital info
  4. Automatic measurement and interpretation
  5. Real time waveform freezing, with partial zoom in and zoom out
  6. Unique system for menu setting and patient info management
  7. Instantaneous preview of waveforms & data report before printing
  8. Automatic arrhythmia detection and recording
  9. Sleeping mode to save energy and extend LCD life
  10. Built-in Li-ion rechargeable batter supporting 50 exams
  11. 1500 exams in the internal memory
  12. Able to record the ECG waveform 10 second prior to operation
  13. Seamless communication with HIS in format of XML, JPG, PDF, etc
Specification:

Lead:                 Standard 12 lead
Input impedance:       ≥ 50MΩ
Output Impedance:     ≤ 100MΩ
Calibration Voltage:     1Mv
Time Constant:         3.2s
Frequency Response:    0.05~ 50Hz
Input Circut:           Isolated with protector against pace making and defibrillation
Sensitivity:            2.5, 5, 10, 20mm/ mV, AGC
Printout Format:       6, 6+1, 6+2, 12+2, 12
Power Requirements:   AC 100~260V, 50-60Hz;
Built-in rechargeable lithium battery
Paper Size:           210mm x 20m roll type paper,  or 210mm x 140 x 20m Z-folding paper
